Description
Description

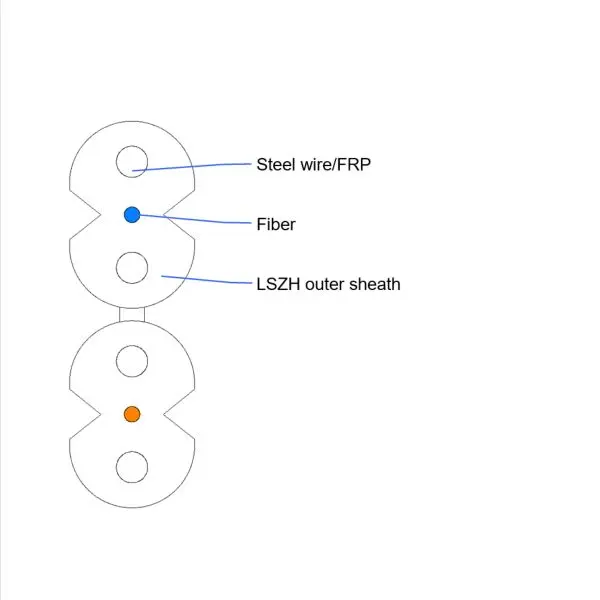

One insensitive fiber is positioned in the center, and placed on both side of two paralleled strength member, to form bow-type unit. And two paralleled bow-type units are linked together.
Feature
Able to be terminated onsite
Easy for stripping, and splicing, simplified installation and maintenance
Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
Better cable structure with two parallel strength member provide excellent crush resistance performance
Fiber positioned in independent bow-type cable without interfering with each other..
Low smoke halogen-free flame-retardant sheath, pro-environment
Performance
Application: Both indoor and outdoor ;
Installation: aerial;
Operating temperature: -20～+60℃;
Bending radius: static 10*D/ Dynamic20*D.
Structure And Technical Specifications
|
Spec |
Outside diameter （mm） |
Max. tensile load (N) |
Crush resistant(N/10cm) |
||
|
Short term |
Long term |
Short term |
Long term |
||
|
GJYSPXH-2 |
2.0×3.0 -6.2 |
200 |
100 |
2200 |
1000 |
