Description
Description

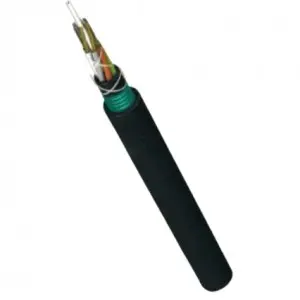

► Central strength member;
► Loose tube stranded;
► PE inner sheath
► Corrugated steel tape armored outdoor cable
► PE outer sheath outdoor cable
Performance
► Application: long haul and building network communication;
► Installation: ducVaerial;
► Operating temperature: -40~+70℃;
► Bending radius: static 12.5*D/ Dynamic25*D.
Feature
► All selection water blocking construction, provide good performance of moisture-proof and water block;
► Special filling gel filled loose tubes provide perfect optical fiber protection
► Corrosion resistance phosphate steel wire with high modulus as central strength member
► Strict craft and raw material control enable lifespan over 30 years.
► For flame retardant cable, outer sheath can be made of low-smoke zero halogen (LSZH) material, and the type is GYFTZY53, additional Nylon resin is extruded over the outer sheath and the type is GYFTY54.
► On customer’s requests, longitudinal color strip on outer sheath can be provided. More details please refer to GYTA series.
► Special cables structures can be designed and manufactured on customer’s request.
