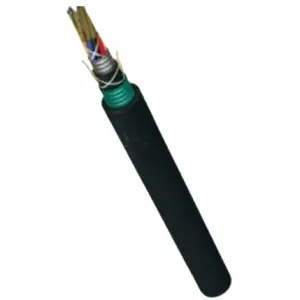

Description
Description
► FRP central strength member;
► Loose tube stranded;
► Corrugated aluminum tape armored outdoor cable
Performance
► Application: long haul and building network communication;
► Installation: duct/aerial;
► Operating temperature: -40-+70℃;
► Bending radius: static 10*D/ Dynamic25*D.
Feature
► All selection water blocking construction, provide good performance of moisture-proof and water block;
► Special filling gel filled loose tubes provide perfect optical fiber protection
► High young’s modulus reinforce plastic (FRP) as central strength member
► Longitudinal corrugated steel tape armored provides reliable performance of moisture-proof and gives desirable crush resistance.
► FRP central strength member is applicable to frequently lighting areas.
► Strict craft and raw material control enable lifespan over 30 years.
► For flame retardant cable, outer sheath can be made of low-smoke zero halogen (LSZH) material, and the type is GYFTZA53, inner sheath can be without metal tape folding, the type is GYFTY53.
► On customer’s requests, longitudinal color strip on outer sheath can be provided. More details please refer to GYTA series.
► Special cables structures can be designed and manufoctured on customer’s request.
Structure And Technical Specifications
| Fiber count | Nominal diameter (mm) | Nominal weight (kg/km) | Max fiber per tube | NO.OF
(Tubes +filler) |
Allowable tensile load
(N) (short term/ long term) |
Allowable crush resistance (N/lOcm)
(short term/long term) |
|
| 2~42 | 15.2 | 218 | 6 | 7 | 3000/1000 | 3000/1000 | |
| 44~72 | 16.2 | 245 | 12 | 6 | 3000/1000 | 3000/1000 | |
| 74~96 | 17.1 | 290 | 12 | 8 | 3000/1000 | 3000/1000 | |
| 98~120 | 18.8 | 340 | 12 | 10 | 3000/1000 | 3000/1000 | |
| 122~144 |
20.4 |
395 | 12 | 12 | 3000/1000 | 3000/1000 | |
| >144 | Available upon customer’s request | ||||||
