Description
Description

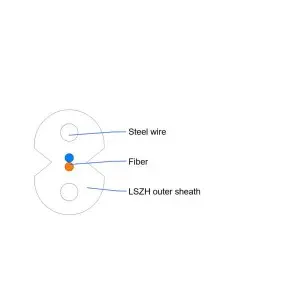

One or more bend insensitive fiber is positioned in the center, and placed on both side of two paralleled strength member, finally extrude flame retardant jacket.
Feature
Able to be terminated onsite
Easy for stripping, and splicing, simplified installation and maintenance
Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
Better cable structure with two parallel strength member provide excellent crush resistance performance
Low smoke halogen-free flame-retardant sheath, pro-environment
Performance
Application: Indoor network communication;
Installation: duct;
Operating temperature: -20～+60℃;
Bending radius: static 10*D/ Dynamic20*D.
Structure And Technical Specifications
|
Type |
Outside diameter （mm） |
Max. tensile load (N) |
Crush resistant(N/10cm) |
||
|
Short term |
Long term |
Short term |
Long term |
||
|
GJXH(V)-1/2/4 |
2.0×3.0 |
200 |
100 |
2200 |
1000 |
