Description

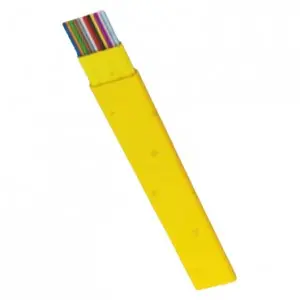

Optical Fiber Cables
► 4/6/8/12 fiber ribbons
► Good-performance sheath materials
► High modulus armid yam strength member
Application
► Ribbon patchcord and ribbon pigtail
► As flexible interconnect between instruments and communication equipments
Features
► Easy fbr stripping and installation
► Extremely high fiber density, small size, light weight and compact structure
► Excellent flame-retardant performance, free to choose diflerent flame-retardant grades sheath
Fiber
| Spec | 4, 6, 8 and 12 fiber ribbons |
| Type | G.651, G.652, G.655, G.657, etc. |
Cable
| Spec | Outside diameter (mm) | Max. tensile load (N) | Crush resistant(N/10cm) | ||
| Short term | Long term | Short term | Long term | ||
| GJDFJV(H)-4 | 3.5×2.5 | 200 | 80 | 500 | 200 |
| GJDFJV(H)-6 | 4.0×2.5 | ||||
| GJDFJV(H)-8 | 4.5×2.5 | ||||
| GJDFJV(H)-12 | 5.0×2.5 | ||||
Sheath
Material : PVC, LSZH, etc.
Temperature Range
| Operating | Transportation & Storage | Installation |
| -20 〜+60 °C | -20 〜+60 °C | -10~+50°C |
Remark: All values above can be customized
