Description

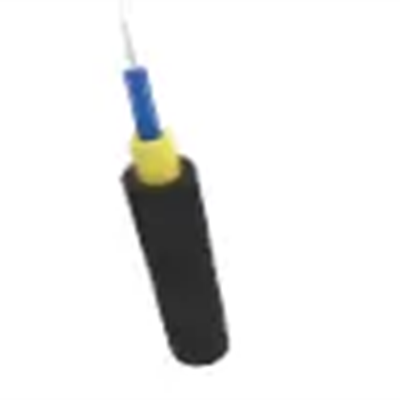

Optical Fiber Cables
► Single colored tight buffer fiber
► Good-performance sheath materials
► High modulus (self-supporting) strength member
Application
► Suitable for aerial dropping
► Both indoor and outdoor cabling
Features
► Able to be terminated onsite
► Flexibility, light weight and compact structure
► Easy for stripping, and splicing, simplified installation and maintenance
► Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
► Excellent mechanical performance and free to be customized
Fiber
Type :ITU-T G.657A
Cable
| Spec | Outside diameter (mm) | Max. tensile load (N) | Crush resistant(N/l0cm) | ||
| Short term | Long term | Short term | Long term | ||
| GJFJH-1 | 2.5 | 150 | 80 | 1500 | 700 |
| GJFJH-1 | 3.0 | 200 | 100 | ||
| GJYFJH-1 | 3.0 | 500 | 250 | 2200 | 1000 |
| GJYFJCH-1 | 3.0-5.3 | 600 | 300 | ||
Sheath
| Inner | LSZH, etc. |
| Outside | LSZH, etc. |
Temperature Range
| Operating | Transportation & Storage | Installation |
| -20~+60 °C | -20~+60°C | -10~+50°C |
Remark: All values above can be customized
