Description
Description

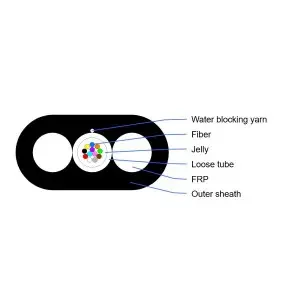

Jelly filled tube up to twelve fibers locates in the center of the cable. Two diametrically opposed dielectric rods are placed alongside the buffer tube to provide the mechanical properties of the cable. The fnished product with its compact flat profle, acts as a self-supporting aerial solution for those last link for the FTTX networks.
Feature
High quality fiber provide excellent transmission performance
Better cable structure with two parallel strength member provide excellent crush resistance performance
Can be self-supporting aerial within a short distance
Unaffected in severe climatic condition
Performance
Application：FTTH access network
Installation：Self-supporting aerial
Operating Temperature：-40～+70℃
Bending radius： Static 10×D / Dynamic 25×D
Structure And Technical Specifications
|
Fiber Count |
Nominal Diameter（mm） |
Nominal Weight（kg/km） |
Allowable Tensile Load（N） （Short term/Long term） |
Allowable Crush Resistance（N/10cm） （Short term/Long term） |
| 2-12 | 4.5×9.0 | 40 | 1000/500 | 2000/1000 |
