Description
Description

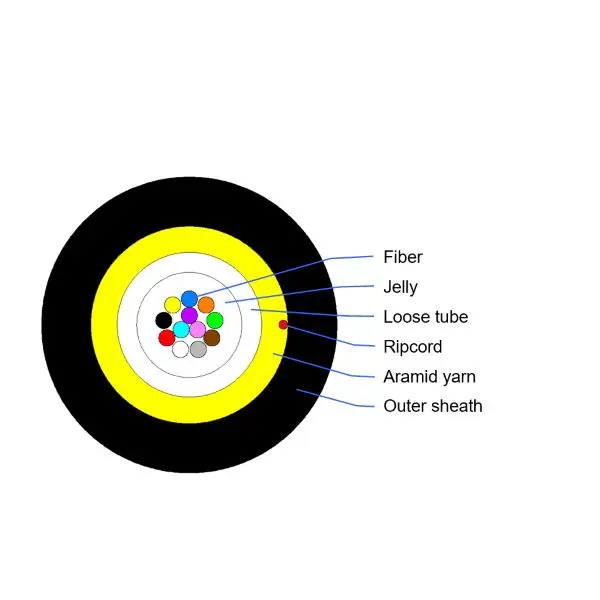

Optical fibres are housed in a loose tube that is made of high-modulus plastic and filled with tube filling compound. Aramid yarns are placed outside the loose tube as the strength member, then a sheath is extruded. This type of cable is particularly applicable to air-blowing constructions in access networks..
Feature
Small size, light weight, high fiber density
Suitable for air-blown installation
Excellent temperature performance for different temperature environment application.
Performance
Application: long haul and building network communication;
Installation: duct;
Operating temperature: -20～+70℃;
Bending radius: static 10*D/ Dynamic20*D.
Structure And Technical Specifications
|
Fiber Count |
Nominal
Diameter (mm) |
Nominal
Weight (kg/km) |
Allowable Tensile（N） | Minimum Bending
Radius（mm） |
Allowable Crusl Resistant（N/10cm） | ||
| Short term | Long term | Dynamic | Static | ||||
| 2～12 | 2.5 | 5.9 | 0.3G | 1G | 20D | 10D | 500 |
| 24 | 2.8 | 12.6 | 0.3G | 1G | 20D | 10D | 500 |
Special cables structures can be designed and manufactured on customer’s request
