Description
Description

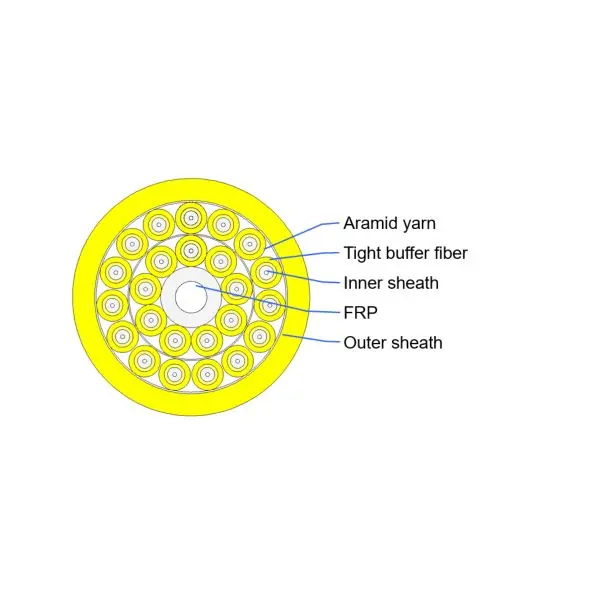

The break-out cable uses several simplex optical cable（made of tight buffered fiber and aramid yarns）as optical sub-units. The sub-units are stranded together to form a cable core. A flame-retardant sheath is extruded on the core.
Feature
Suitable for making many kinds of connector
Compact size, light weight, and excellent mechanical performance
Excellent flame-retardant performance, free to choose different flame-retardant grades sheath
All-dielectric design, applicable to lightning-prone areas.
Performance
Multi-core patchcord
Any indoor purpose cable distribution
Backbone distribution cable in building
Structure And Technical Specifications
|
Spec |
Outside diameter （mm） |
Max. tensile load (N) |
Crush resistant(N/10cm) |
||
|
Short term |
Long term |
Short term |
Long term |
||
|
GJBFJV(H)-2 |
7.0 |
660 |
200 |
1000 |
300 |
